Block Reinforcement

  • 1
  • 2
  • 3

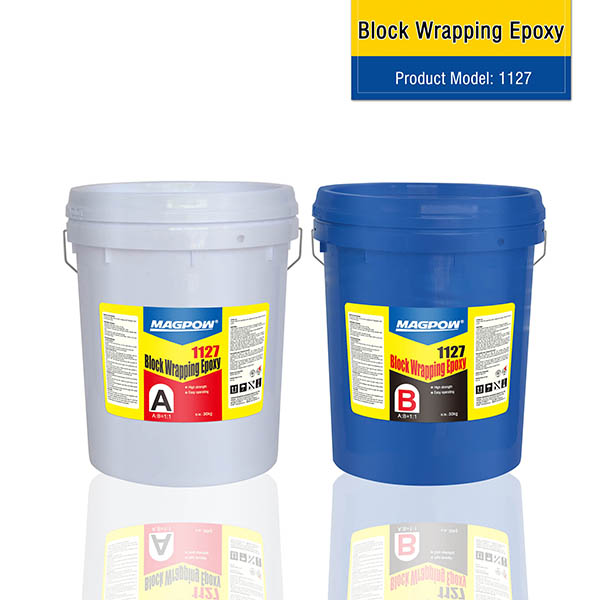

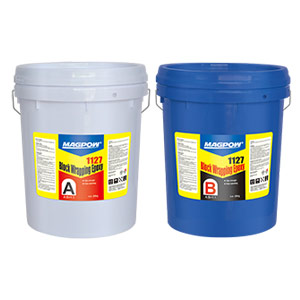

Block Wrapping Epoxy

Item No.:
1127

Mix ratio by weight:
A:B=1:1

Application:
This product is mainly used for block wrapping with fiberglass mesh to reinforce the blocks.

  • Steps for usage
  • Precautions
  • Technical parameters
  • Shipping Package





[Instructions]
1. Surface treatment
l The block surface should be clean, no mud, sand and oil or other impurities;
l Remove the big defects on the block surface such as the soil;
l Polish the sharp edges or corners on the blocks.

2. Prepare the glue and mix
l Mix the glue in A:B=1:1(by weight)and stir completely with the electric mixer, do not mix the apparatus of A and B. Do not pour the mixed glue back to the package;
l Please use up the glue within the pot life. The glue will be fever and is prohibited to use when beyond the pot life. Under 25~30℃, the mixed glue 3kg should be used up within 10 mins. The more of the glue mixed, and the higher of the temperature, the pot life is shorter.
l Do not mix the cap of A and B. Please seal the caps anytime in case the moisture and dash from the air.
l If temperature is very low, the glue will be thicker, heat up the glue in water bath to decrease the viscosity for a convenient use.

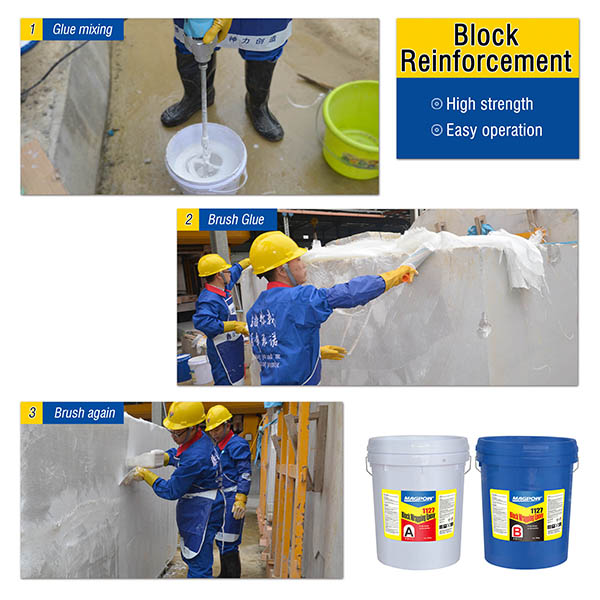

3. Spreading the glue
l The perfect temperature to spread the glue is 25-35℃, air humidity less than 75%;
l Scrape the glue back and forth, spread the glue evenly on the surface of the block;
l Wrap the block with the fiberglass mesh flatly and overlap should be more than 10cm;
l Press the fiberglass mesh to be block with the scrape, then spread the glue again on the fiberglass mesh.

4. Glue solidify
l Initial curing of the glue is in 2-3 hours at room temperature and can be proceed to next procedure after 24 hours;
l The operation temperature should not be lower than 5℃, when the temperature lower than 10℃, the curing speed will be slow down, we suggest to heat up to accelerate the curing speed.

5. Clean up
Please clean the apparatus with professional cleaner before the glue cured.

[Notes]
1.Some facts will affect the performance of the glue as below:
l The stone is not dry enough or the air humidity is too high, the stone absorbed the moisture from air
l Part A and B was not mixed exactly base on the stipulated ratio
l Glue mix uneven or not completely
l The mixed glue was not used within the pot life.

2.In winter and low temperature, the product may form crystal or caking. Just heat up the glue and make the crystal or caking dissolved, this will not affect the glue performance.

3.Clean and wipe the glue on cloth or skin before it cured with alcohol, then flush with soap water. If in eyes, flush with plenty of water and seek for medical cure; if swallowed, do not emetic, drink plenty of egg white or milk, then seek for medical cure immediately.

【Protective measures】
Due to the individual differences of the operators, the glue may cause allergies to certain parts of the skin, but the product meets the national mandatory standard of GB18583-2008, which is an environmentally friendly product and has no other harm to the human body. It is recommended that your company use the following necessary protection when using the compound glue:
1. Use in a well ventilated environment;
2. Equipped with necessary protective clothing, protective gloves and protective masks;
3. to avoid direct contact with the skin, if you accidentally contact the skin, you can use soapy water to clean;
4. Before adjusting the glue, first open the cover of component B, let the free low molecular substances volatilize, and then take the glue and adjust the glue;
5. If there is an allergic reaction, employees should change jobs.

【product information】

No.

Item

Technical Specifications

1

Appearance

A component

Colorless transparent liquid

B component

Colorless transparent liquid

2

Adjusting ratio (A:B) AB

11

3

 pot life 25℃,min

20-30

4

initial curing time25℃,h

2-3

5

tensile shear strengthRT48hMPa

12.0

6

 pressure

Shear

Strong

Degree

MPa

stone -

Stone

standard condition48h

8.0

Immersion168h

8.0

Heat treatment80℃,168h

8.0

Freeze-thaw cycle 50 times

8.0

Stone -

Stainless steel

standard condition48h

10.0


Note: The above adjustment amount is 600g

[Stock and package]
1.Sealed and stock in cool, dry and ventilate place, stock temperature under 5-40℃. Shelf life one year from the production date, it can be still used based on passing the test when beyond the shelf life.
2.This product is corrosive goods, keep far away from the heat, fire, sunshine and rain during delivery and stock. In the process of transportation, operate gently, it is prohibited to roll, impact, stress, inversion, and offset
3.Packing size: 60kg/set,packed in plastic drum.

[Important notes]
1.For materials to be bond are different, this may affect the glue performance. Please have a try before plenty use.
2.We solemn promise: we produce the products according to our enterprise standard strictly, we will responsible for the product quality, but not responsible for the operation process.
3.To provide the certified products to our customers, we operate strictly according to Quality systemISO9001 and Environmental management system ISO14001. Our technology suggestions in oral, written and experiment is from our honestly, which can not be our guarantee. Please read the instructions carefully before use, also arrange testing to ensure the glue is suitable for your process and applications.
4.We can not control the goods stock & delivery, operate condition and process, we will not responsible for the quality and related lost from the incorrect operations.
5.Any employees from our company can not revise or disregard the terms above.

【important hint】
1. Due to the ever-changing material of the material to be bonded, material changes may affect the bonding effect. For this reason, be sure to try it before using it in large quantities.
2. Our company solemnly promises that the company's products are produced strictly in accordance with the company's standards. Our company is only responsible for the products themselves and is not responsible for the customer's use of the process.
3. Our company strictly implements the ISO9001 quality system and the ISO14001 international environmental certification system to provide customers with quality and qualified products. The technical opinions provided by our company, whether verbally, in writing or on the experiment, are sincere, but not guaranteed. Users should read the instructions and use the experiment to verify the suitability of the proposed process and use.
4. The company is unable to control the storage and transportation, the environment at the time of use, and the operation process during use. Therefore, the quality problems caused by improper construction of the customer and the associated losses are the responsibility of the user, and it is not the responsibility of the company.
5. No employee of the company has the right to change or waive the above terms!

【Executive Standards】
National mandatory standard: GB24264-2009
